Product Description

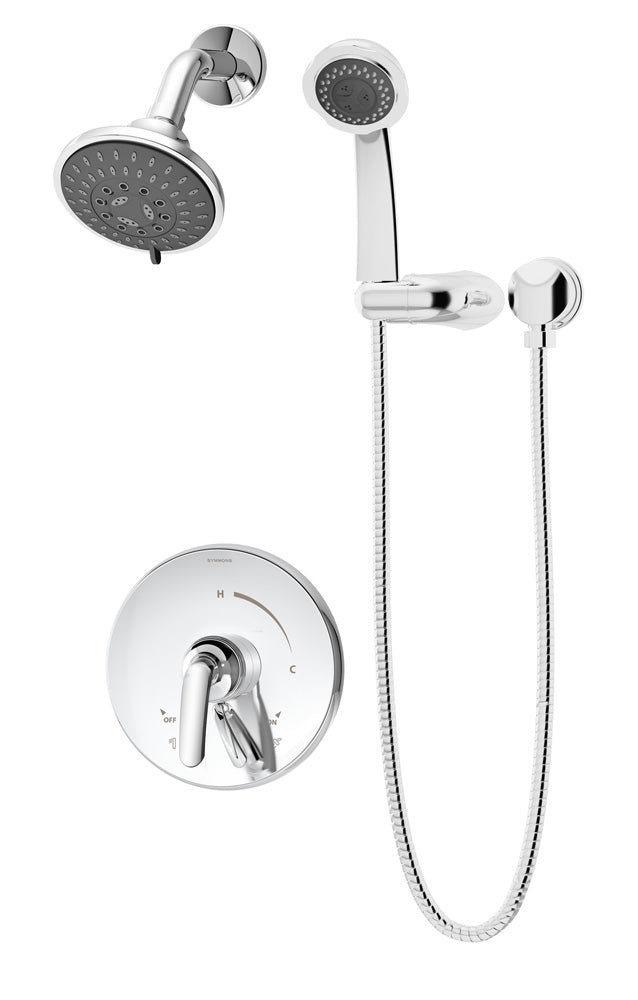

Want a showerhead and a hand shower run from one Symmons valve? The Symmons Elm shower and hand shower trim, model S550815TRM, is the visible part of the system, in Polished Chrome.
This listing is the trim only. The valve body in the wall is sold separately. Symmons names the Temptrol valve body S262BODY for this trim, or S262XBODY where service stops are required. The valve also comes with the Rapid Install Bracket as model S262BRBODY. A tub spout is not included.
The trim has a five mode round showerhead with a shower arm, a three mode hand shower on a 60 in. flexible metal hose and a cradle for the hand shower. A single metal lever handle sets the water temperature, and the solid brass valve cover plate has hot and cold indicators. A second lever on the valve trim is the integral diverter control; Symmons' sheet also calls it a volume control lever. The showerhead flows at 1.5 gallons per minute (5.7 L/min).
Features
- Trim only: Temptrol valve body S262BODY, S262XBODY (with service stops) or S262BRBODY (with bracket) is sold separately
- Five mode round showerhead
- Three mode hand shower with cradle
- 60 in. flexible metal hose
- Single metal lever handle adjusts the water temperature
- Second lever for the integral diverter control
- 1.5 GPM (5.7 L/min) flow rate
- Brass and stainless steel construction with some plastic elements
What's Included
- Showerhead
- Shower arm
- Escutcheon
- Hand shower
- 60 in. flexible hose
- Cradle for the hand shower
- Lever handle
- Volume control lever
Specifications
| Model | S550815TRM |
| UPC | 671256560459 |
| Brand | Symmons |
| Collection | Elm |
| Finish | Polished Chrome |
| Flow Rate | 1.5 GPM (5.7 L/min) |
| Showerhead | Five mode, round |
| Hand Shower | Three mode, with cradle |
| Hose | 60 in. flexible metal |
| Handle | Single metal lever |
| Construction | Brass and stainless steel with some plastic elements |
| Valve Body Required | Symmons Temptrol S262BODY, S262XBODY or S262BRBODY (sold separately) |
| Rough-In | 2-3/8 in., plus or minus 1/2 in. |
| Weight | 7.0 lb |
| Warranty | Symmons states: "Symmons limited lifetime homeowner warranty/10 year commercial warranty" |
