Product Description

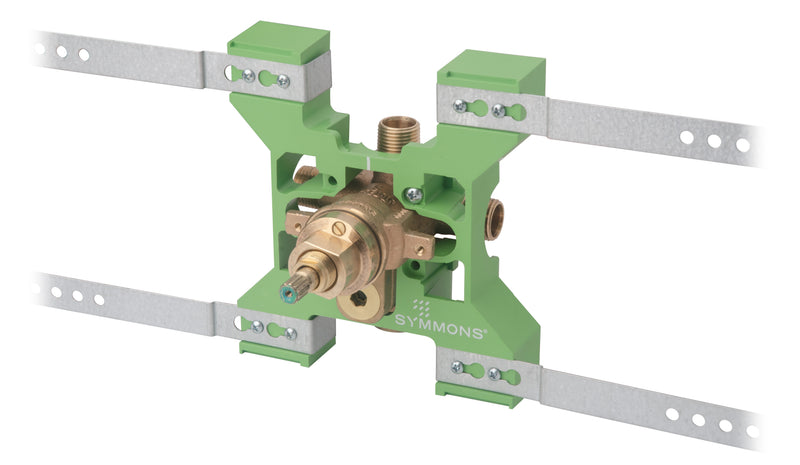

Roughing in a Symmons tub and shower? The Symmons Temptrol valve body, model S262BRBODY, is a 4 port pressure-balancing tub and shower valve body with integral diverter, on Symmons' Rapid Install Bracket. It goes in the wall behind a Symmons Temptrol trim.
This listing is the valve body only. The trim (handle, cover plate, showerhead and spout) is sold separately. Symmons names this valve body for its S9608PLR15TRM and S550815TRM trims, and its S-4702 Allura trim calls for an S262 series valve.
The valve is built of brass, bronze and stainless steel, with a one-piece cast brass body. Symmons describes an adjustable piston that balances the hot and cold water pressure as demand in the plumbing system changes. It has the VersaFlex integral diverter, which diverts the water to the outlets without a separate diverter valve. It comes with 1/2 in. NPT threaded and direct sweat connection inlets and outlets. This model comes with Symmons' factory-installed Rapid Install Bracket, which has 4 metal straps and screws and secures the valve between wall studs up to 24 inches apart, center to center.
Features
- Pressure-balancing tub and shower valve body with integral diverter
- Rapid Install Bracket, factory installed, with 4 metal straps and screws
- VersaFlex integral diverter adjusts the volume of water flow to the showerhead, tub spout or hand spray
- Brass, bronze and stainless steel construction
- 1/2 in. NPT threaded and direct sweat connection inlets and outlets
- Adjustable stop screw to limit handle turn
- Valve body only: trim sold separately
Specifications
| Model | S262BRBODY |
| UPC | 671256564242 |
| Brand | Symmons |
| Series | Temptrol |
| Valve Type | Pressure-balancing tub and shower valve body with integral diverter and Rapid Install Bracket |
| Diverter | VersaFlex integral diverter |
| Ports | 4 port, common plane |
| Inlets | 1/2 in. IPS and 1/2 in. sweat |
| Outlets | 1/2 in. IPS and 1/2 in. sweat |
| Construction | Brass, bronze and stainless steel |
| Rough-In with Bracket | 2-7/8 in. from the centerline of the valve ports to the front of the finished wall |
| Wall Cavity | Min. 2x3 |
| For Use With | Symmons trims S9608PLR15TRM, S550815TRM and S-4702-STN-TRM |
| Weight | 3.8 lb |
| Warranty | Symmons states: "Limited lifetime warranty for consumers; 10 year warranty for commercial use" |
