Product Description

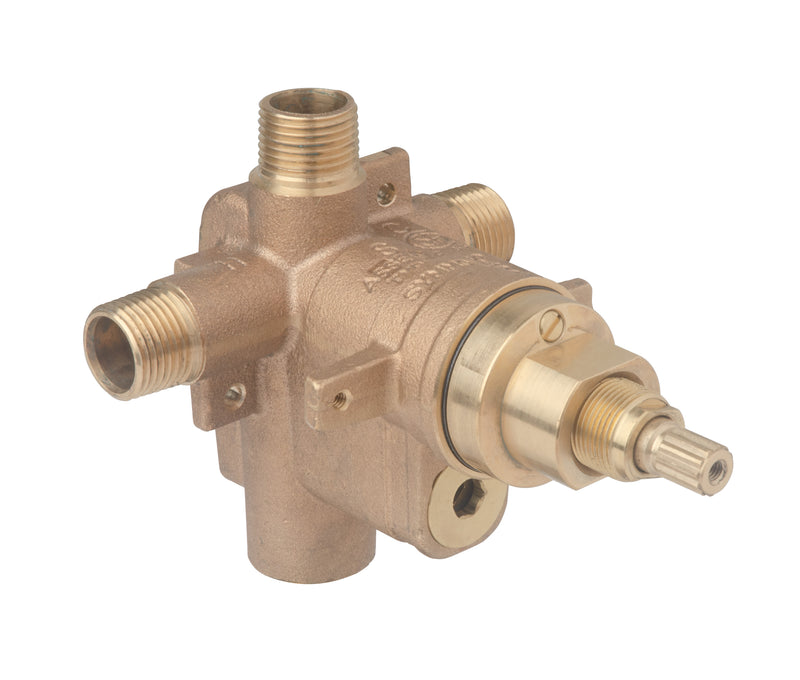

Roughing in a Symmons tub and shower? The Symmons Temptrol valve body, model S262BODY, is a 4 port pressure-balancing tub and shower valve body with integral diverter. It goes in the wall behind a Symmons Temptrol trim.
This listing is the valve body only. The trim (handle, cover plate, showerhead and spout) is sold separately. Symmons names this valve body for its S9608PLR15TRM and S550815TRM trims, and its S-4702 Allura trim calls for an S262 series valve.
The valve is built of brass, bronze and stainless steel, with a one-piece cast brass body. Symmons describes an adjustable piston that balances the hot and cold water pressure as demand in the plumbing system changes. It has the VersaFlex integral diverter, which diverts the water to the outlets without a separate diverter valve. It comes with 1/2 in. NPT threaded and direct sweat connection inlets and outlets. Symmons states that the body is designed to accommodate back-to-back and thin-wall installations. Stringer mounts are included. Symmons states that the outlets are not to be plugged.
Features
- Pressure-balancing tub and shower valve body with integral diverter, 4 port, common plane
- VersaFlex integral diverter adjusts the volume of water flow to the showerhead, tub spout or hand spray
- Brass, bronze and stainless steel construction
- 1/2 in. NPT threaded and direct sweat connection inlets and outlets
- Adjustable stop screw to limit handle turn
- Stringer mounts included
- Valve body only: trim sold separately
Specifications
| Model | S262BODY |
| UPC | 671256564228 |
| Brand | Symmons |
| Series | Temptrol |
| Valve Type | Pressure-balancing tub and shower valve body with integral diverter |
| Diverter | VersaFlex integral diverter |
| Ports | 4 port, common plane |
| Inlets | 1/2 in. IPS and 1/2 in. sweat |
| Outlets | 1/2 in. IPS and 1/2 in. sweat |
| Construction | Brass, bronze and stainless steel |
| Rough-In | 2-3/8 in., plus or minus 1/2 in. |
| Wall Cavity | Min. 2x3 |
| For Use With | Symmons trims S9608PLR15TRM, S550815TRM and S-4702-STN-TRM |
| Weight | 3.0 lb |
| Warranty | Symmons states: "Limited lifetime warranty for consumers; 10 year warranty for commercial use" |
