Product Description

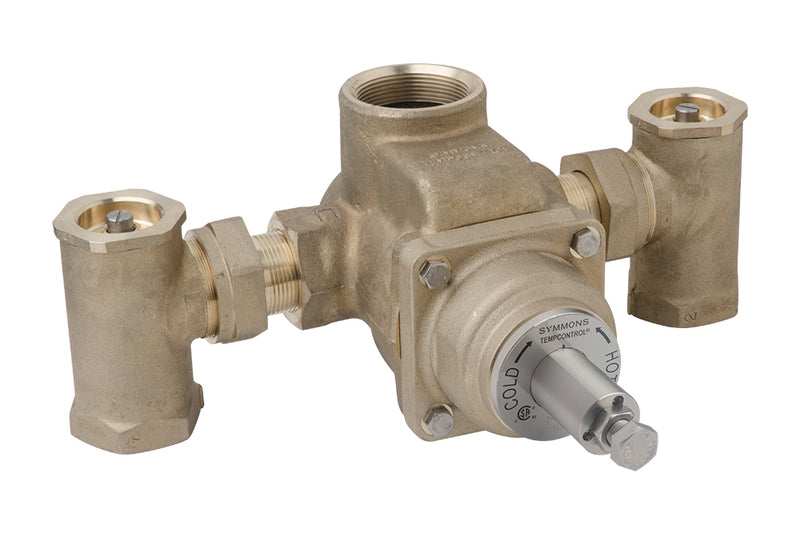

Sizing a master mixing valve for a hot water system? The Symmons TempControl, model 7-900, is a thermostatic master mixing valve built of brass, bronze and stainless steel. It has a 1-1/2 in. female NPT inlet and a 1-1/2 in. female NPT outlet.
Symmons gives a temperature control range of 70°F to 150°F. Symmons states that thermostatic water controllers should be sized by the flow capacity required from the valve, not by the pipe size supplied to it. Symmons describes TempControl valves for commercial or residential use.
Features
- TempControl thermostatic mixing valve
- 1-1/2 in. female NPT inlet, 1-1/2 in. female NPT outlet
- Brass, bronze and stainless steel construction
- Temperature control range 70°F to 150°F
Specifications
| Model | 7-900 |
| UPC | 671256435627 |
| Brand | Symmons |
| Series | TempControl |
| Valve Type | Thermostatic master mixing valve |
| Inlet | 1-1/2 in. female NPT |
| Outlet | 1-1/2 in. female NPT |
| Construction | Brass, bronze and stainless steel |
| Temperature Control Range | 70°F to 150°F (21.1°C to 65.6°C) |
| Approach Temperature | 5°F |
| Flow Rate at 5 psi | 30 gpm |
| Flow Rate at 10 psi | 55 gpm |
| Flow Rate at 20 psi | 76 gpm |
| Flow Rate at 25 psi | 84 gpm |
| Flow Rate at 30 psi | 89 gpm |
| Flow Rate at 45 psi | 104 gpm |
| Weight | 23.6 lb |
| Warranty | Symmons states: "Symmons' Limited Lifetime Homeowner Warranty"; "10 Year Commercial Warranty" |
