Product Description

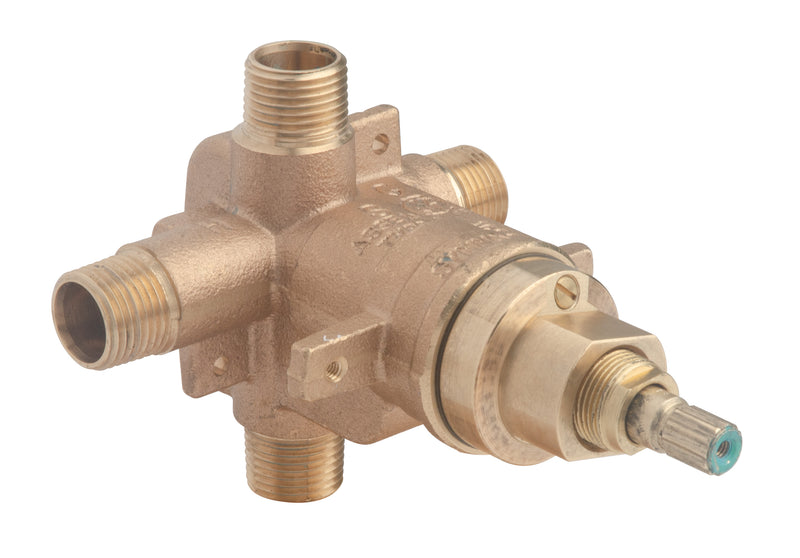

Roughing in a Symmons tub and shower? The Symmons Temptrol valve body, model 262BODY, is a 4 port pressure-balancing tub and shower valve body. It goes in the wall behind a Symmons Temptrol trim.
This listing is the valve body only. The trim (handle, cover plate, showerhead and spout) is sold separately. Symmons names this valve body for its 9605-PLR-1.5-TRM, 3592BMB15TRM and 3692MB15TRM trims.
The valve is built of brass, bronze and stainless steel, with a one-piece cast brass body. Symmons describes an adjustable piston that balances the hot and cold water pressure as demand in the plumbing system changes. It comes with 1/2 in. NPT threaded and direct sweat connection inlets and outlets. Symmons states that the body is designed to accommodate back-to-back and thin-wall installations. Stringer mounts are included.
Features
- Pressure-balancing tub and shower valve body, 4 port, common plane
- Brass, bronze and stainless steel construction
- 1/2 in. NPT threaded and direct sweat connection inlets and outlets
- Adjustable stop screw to limit handle turn
- Stringer mounts included
- Valve body only: trim sold separately
Specifications
| Model | 262BODY |
| UPC | 671256552126 |
| Brand | Symmons |
| Series | Temptrol |
| Valve Type | Pressure-balancing tub and shower valve body |
| Ports | 4 port, common plane |
| Inlets | 1/2 in. IPS and 1/2 in. sweat |
| Outlets | 1/2 in. IPS and 1/2 in. sweat |
| Construction | Brass, bronze and stainless steel |
| Rough-In | 2-3/8 in., plus or minus 1/2 in. |
| Wall Cavity | Min. 2x3 |
| For Use With | Symmons trims 9605-PLR-1.5-TRM, 3592BMB15TRM and 3692MB15TRM |
| Weight | 2.7 lb |
| Warranty | Symmons states: "Limited lifetime warranty for consumers; 10 year warranty for commercial use" |
