Product Description

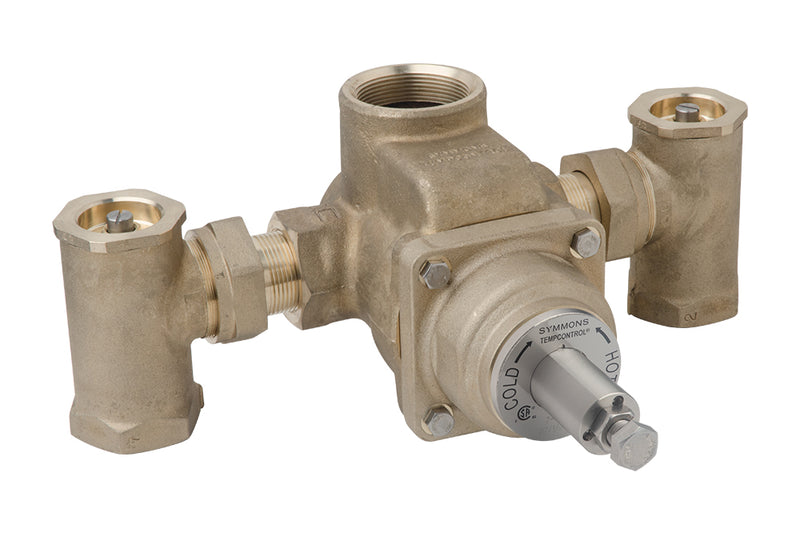

Sizing a master mixing valve for a hot water system? The Symmons TempControl, model 7-1000, is a thermostatic master mixing valve built of brass, bronze and stainless steel. It has a 1-1/2 in. inlet and a 2 in. outlet.
Symmons gives a temperature control range of 70°F to 150°F. Symmons states that thermostatic water controllers should be sized by the flow capacity required from the valve, not by the pipe size supplied to it.
Features
- TempControl thermostatic mixing valve
- 1-1/2 in. inlet, 2 in. outlet
- Brass, bronze and stainless steel construction
- Temperature control range 70°F to 150°F
Specifications
| Model | 7-1000 |
| UPC | 671256435634 |
| Brand | Symmons |
| Series | TempControl |
| Valve Type | Thermostatic master mixing valve |
| Inlet | 1-1/2 in. |
| Outlet | 2 in. |
| Construction | Brass, bronze and stainless steel |
| Temperature Control Range | 70°F to 150°F (21.1°C to 65.6°C) |
| Approach Temperature | 5°F |
| Flow Rate at 5 psi | 38 gpm |
| Flow Rate at 10 psi | 67 gpm |
| Flow Rate at 20 psi | 100 gpm |
| Flow Rate at 25 psi | 111 gpm |
| Flow Rate at 30 psi | 120 gpm |
| Flow Rate at 45 psi | 140 gpm |
| Weight | 21.5 lb |
| Warranty | Symmons states: "Symmons' Limited Lifetime Homeowner Warranty"; "10 Year Commercial Warranty" |
